AM01 FPGA Crypto Miner + OrangePi Set

Name: AM01 FPGA Crypto Miner + OrangePi Set
Brand: FPGA Miner
SKU: AM01-RPI-EN-1
Price: 789.9 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Brand

789,90 $ incl. VAT (19%)

AtomMiner AM01 FPGA Crypto-Miner + OrangePi Lite or 3 LTS with 16 GB microSD card (Class 10) and OS preinstalled + AtomMiner-Software preinstalled + official OrangePi case + USB power cable – Start mining instantaneously

Small – Plug & Play – Energy Efficient – Quiet – Auto Configuration – Profit Switching – 7-18 Watts

Out of stock

Algo	Coin(s)	Version	Hashrate	Power	Release date
Keccak/ Keccak-C	MAX, SLOTH, BCT, GLT	1.4	600 MH/s	16.9W	January 2022
SHA-3	Zen Protocol	1.2	500 MH/s	17.5W	postponed
SHA256	BTC and many others	1.1	500 MH/s	16W	Apr 2019
Blakecoin	BLC, UMO, PHO, BBTC, ELT, LIT	1.2	1200 MH/s	13W	Feb 2019
Gr0estl	GRS	1.1	32 MH/s	10W	June 2019
Skein2	LOG	1.0	44 MH/s	6.7W	June 2019
Myriad	GLT, AUR, ARG, DGB, XMY, XSH, XVG and more	1.0	32 MH/s	9.8W	July 2019
SHA-256t	OCP	1.0	180 MH/s	10W	July 2019
SHA-256q	PYE	1.0	150 MH/s	11W	July 2019
Odocrypt	DGB	1.3	50 MH/s	7.2W	July 2019
Tribus	D, BZL, GLT, SCRIV	1.0	25 MH/s	9W	Dec 2019
Blockstamp	BST	1.0	300 MH/s	15W	Dec 2019
Blake2s	GLT	1.0	1200 MH/s	12W	Dec 2019
Blake2b (GLT)	GLT	1.0	250 MH/s	10W	May 2020
Blake2b (TNET)	TNET, BCX	1.0	250 MH/s	11W	May 2020
K12	AEON	1.0	800 MH/s	13W	July 2021
SHA256csm	GALE, INN	1.1	150 MH/s	5.1W	March 2023

Ask a Question
AM01 FPGA Crypto Miner + OrangePi Set
789,90 $ incl. VAT (19%)
Ask a Question
Your Name (required)

Your Email (required)

Phone Number

Your Message (required)

The AtomMiner AM01

The AtomMiner (crypto-coin miner) allows different algorithms to be mined at a very competitive price per kWh. The advantage of these powerful FPGA chips (Xilinx-7 Series) is their extremely low power consumption. With a maximum power consumption of about 18 watts, the AtomMiner achieves a hashrate comparable to a modern NVIDIA GeForce or AMD Radeon GPU graphics card.

This advantage in power consumption not only makes it cheaper to mine, but it is also possible to run the AtomMiner FPGA with a solar panel and achieve a completely sustainable, green blockchain. Some managed to run the miner during the day with solar panels and used a car battery at night, which would be charged with solar energy.

If you have a mobile internet connection (eg via your smartphone), it is even possible to mine cryptos while driving with a 12 V car plug.

This bundle includes a OrangePi 3 LTS Kit (16 GB microSD card, preinstalled OS Armbian, preinstalled AtomMiner software and official case) or a OrangePi Lite Kit (including 16 GB microSD card, preinstalled OS Armbian, preinstelled AtomMiner software, official case, USB 5 V power cable) so you can start mining right away.

One OrangePi is able to control up to 64 Atomminer AM01. Just plug in additional units and they will auto-configure, program themselves and switch to profit-switching mode.

Xilinx 7 Series FPGA inside (from official Xilinx distributors)
Automatic FPGA reconfiguration
Almost instant FPGA configuration with soft start to lower energy consumption
True Scalability with no interruption
Hot-Swap and Plug-and-Play support
Hashrate comparable to GPU at only 1/10 or less power consumption
True USB2.0/USB3.0 communication interface
Minimum requirement for the host computer
Universal 12VDC power input
Low Power consumption
Small & Lightweight
Silent operation
3 Years warranty

State-of-the-art Software designed exclusively for AtomMiner
Every host PC can control up to 64 miners simultaneously
We support Raspberry Pi 1/2/3 right out of the box
Miners can be connected and disconnected without interrupting mining
Seamless integration with AtomMiner Pool and other services
Detailed and real time mining statistics
Pre- configured downloadable OS images
Free lifetime software and firmware updates
No dev fees
Portable
No heat
Constant updates

Power connection		DC 5.5/2.1mm
Power supply voltage		12VDC
Input current (Idle)		150mA
Input current (Hashing), max		1.3A

Data Connection		USB Type B
Size		110x67x45mm
Operating Temperature (Environment)		0 – 40℃
Storage Temperature		-25 – 100℃
Weight		200g

Currently Supported Algorithms and Coins

Algo	Coin(s)	Version	Hashrate	Power	Release date
Keccak/ Keccak-C	MAX, SLOTH, BCT, GLT	1.4	600 MH/s	16.9W	January 2022
SHA-3	Zen Protocol	1.2	500 MH/s	17.5W	postponed
SHA256	BTC and many others	1.1	500 MH/s	16W	Apr 2019
Blakecoin	BLC, UMO, PHO, BBTC, ELT, LIT	1.2	1200 MH/s	13W	Feb 2019
Gr0estl	GRS	1.1	32 MH/s	10W	June 2019
Skein2	LOG	1.0	44 MH/s	6.7W	June 2019
Myriad	GLT, AUR, ARG, DGB, XMY, XSH, XVG and more	1.0	32 MH/s	9.8W	July 2019
SHA-256t	OCP	1.0	180 MH/s	10W	July 2019
SHA-256q	PYE	1.0	150 MH/s	11W	July 2019
Odocrypt	DGB	1.3	50 MH/s	7.2W	July 2019
Tribus	D, BZL, GLT, SCRIV	1.0	25 MH/s	9W	Dec 2019
Blockstamp	BST	1.0	300 MH/s	15W	Dec 2019
Blake2s	GLT	1.0	1200 MH/s	12W	Dec 2019
Blake2b (GLT)	GLT	1.0	250 MH/s	10W	May 2020
Blake2b (TNET)	TNET, BCX	1.0	250 MH/s	11W	May 2020
K12	AEON	1.0	800 MH/s	13W	July 2021
SHA256csm	GALE, INN	1.1	150 MH/s	5.1W	March 2023

For future updates and developments please visit the current roadmap.

Current AM01 Hashrate Comparison

Algo: Keccak/Keccak-C/SHA-3

Device	Hashrate	Power	MHash per Watt
Nvidia GTX 750Ti	140MH/s	60W	2.33
Nvidia GTX 1070	480MH/s	150W	3.42
Nvidia GTX 1080 Ti	1050MH/s	280W	3.75
AMD R9 380	180MH/s	215W	0.84
AMD RX 470	215MH/s	140W	1.54
AMD RX 580	310MH/s	225W	1.38
AtomMiner AM01	*540MH/s*	*18W*	30

Algo: Blakecoin

Device	Hashrate	Power	MHash per Watt
Nvidia GTX 750Ti	800MH/s	74W	15.99
Nvidia GTX 1070	4930MH/s	180W	27.5
Nvidia GTX 1080 Ti	8030MH/s	280W	28.78
AMD R9 380	2100MH/s	205W	10.25
AMD RX 470	2339MH/s	135W	17.33
AMD RX 580	3620MH/s	175W	20.69
AtomMiner AM01	1200MH/s	*13W*	92.31

Some GPUs can achieve slightly higher hash rates, but they probably also need more power.
* The warranty of our AtomMiner is 36 months.

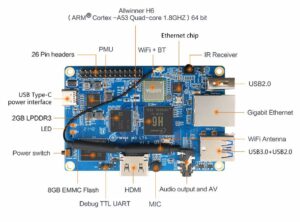

OrangePi 3 LTS

Hardware specification

CPU	Allwinner H6 Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
GPU	• High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS
Power management chip	AXP805
RAM	2GB LPDDR3 (shared with GPU)
Onboard Storage	• Micro SD card slot • 8GB EMMC Flash
Onboard Network	• YT8531C Chip • Support 10/100M/1000M Ethernet
Onboard WIFI+Bluetooth	• AW859A Chip • Support IEEE 802.11 a/b/g/n/ac • Support BT5.0
Video Output	• HDMI 2.0a • TV CVBS Output
Audio output	• HDMI Output • 3.5mm Audio Port
Power Source	5V3A Type-C
USB	1* USB 3.0 HOST、2* USB 2.0 HOST
Low-level peripherals	26pin connector with1* I2C, 1SPI, 1UART &Multiple GPIO Ports
Debug serial port	UART-TX、UART-RX & GND
Button	Power Button (SW4)
LED	Power LED& Status LED
IR Receiver	Support IR Remote Control
Supported OS	Android 9.0、Ubuntu、Debian
Appearance specification introduction
Dimension	56mm*85mm
Weight	45g

ARMbian OS

The OrangePi 3 LTS comes with Armbian Desktop pre-installed. It has a graphical user interface with popular programs such as web browser (Google Chrome), Office Suite (Libre Office) and much more. The AtomMiner-Cli is pre-installed as well, so you can start mining as fast as possible.
